Using the new Shadcn Sidebar
Shadcn UI recently introduced a powerful new sidebar component, featuring a modern and refined design that allows for a more customizable sidebar experience. The latest version of Achromatic also integrates the new shadcn sidebar - with a few adjustments.
14 Nov 20246 minutes read

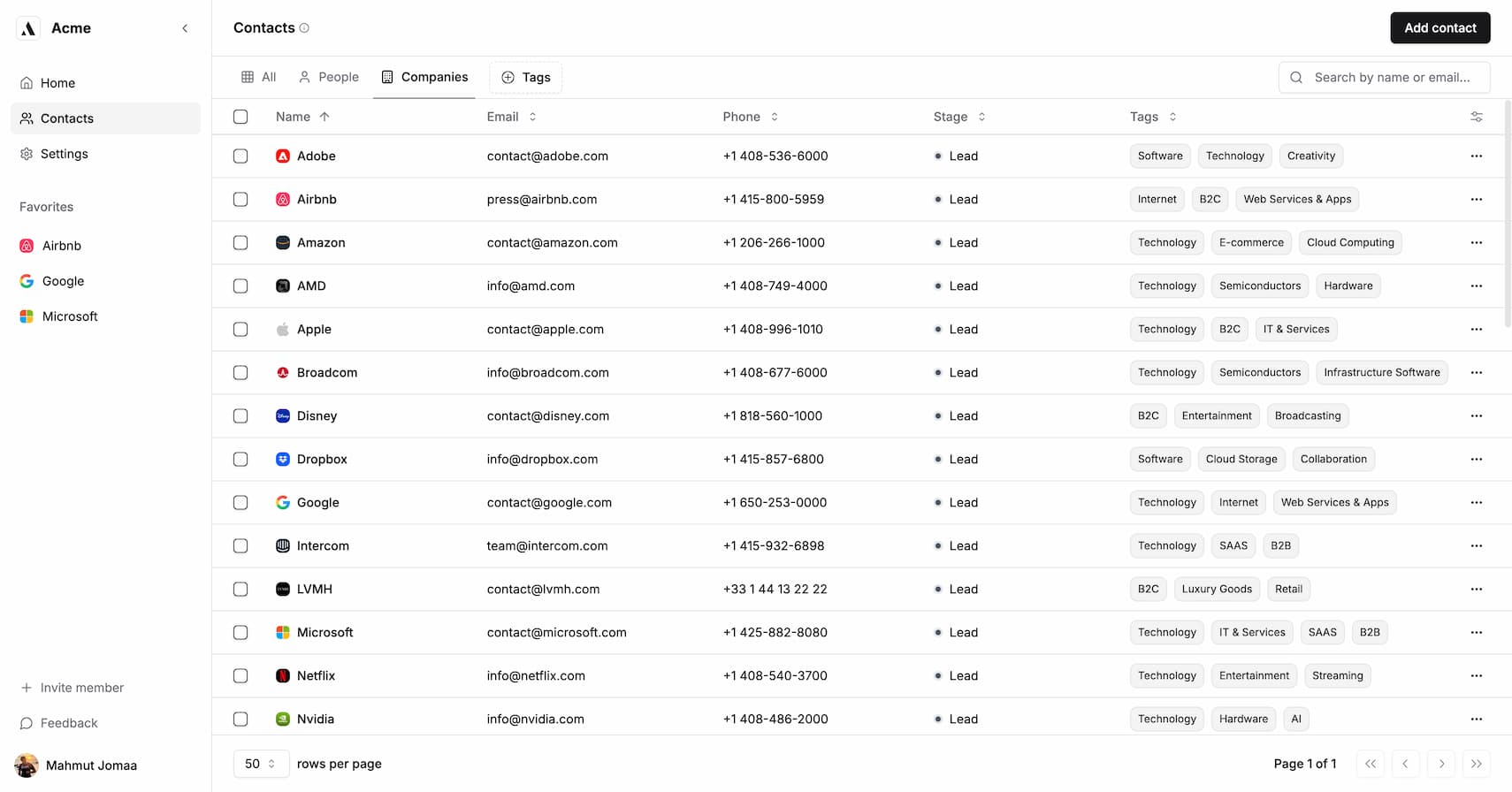

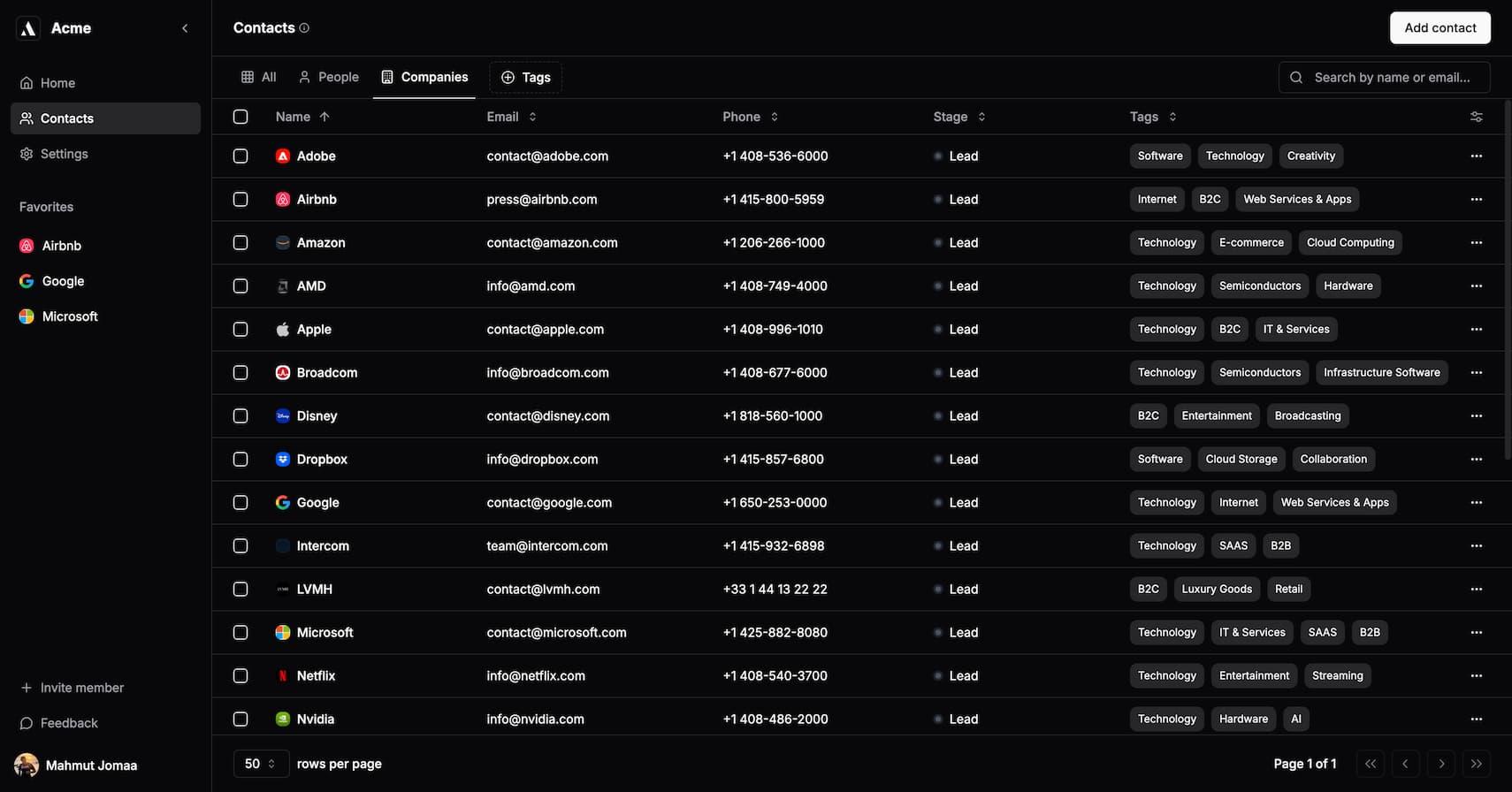

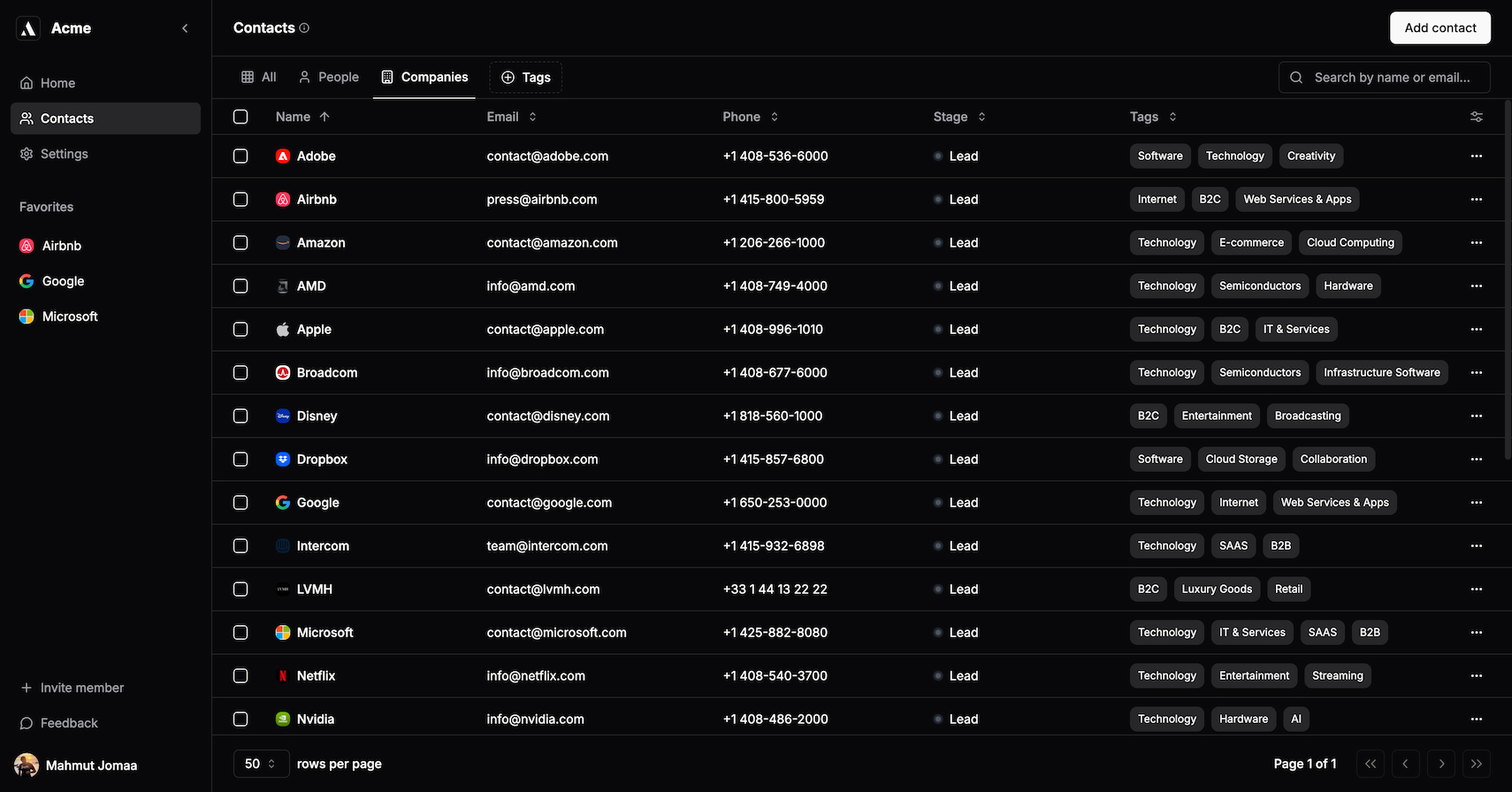

How does it look?
We kept the original Achromatic sidebar look, but had to make a few adjustments.
- Sidebar Width: Set to 240px in shadcn/ui for alignment with common sidebar standards.
- Collapsed Sidebar Width: Adjusted to 56px for smooth transitions.
- Group Padding: Added padding around groups in shadcn/ui for improved layout.
- Vertical Spacing: Removed extra space between the logo and main menu.
- Menu Item Height: Adjusted to 36px for easier, more accessible clicking.
- Trigger Icon: Support for different/multiple icons.
Extras

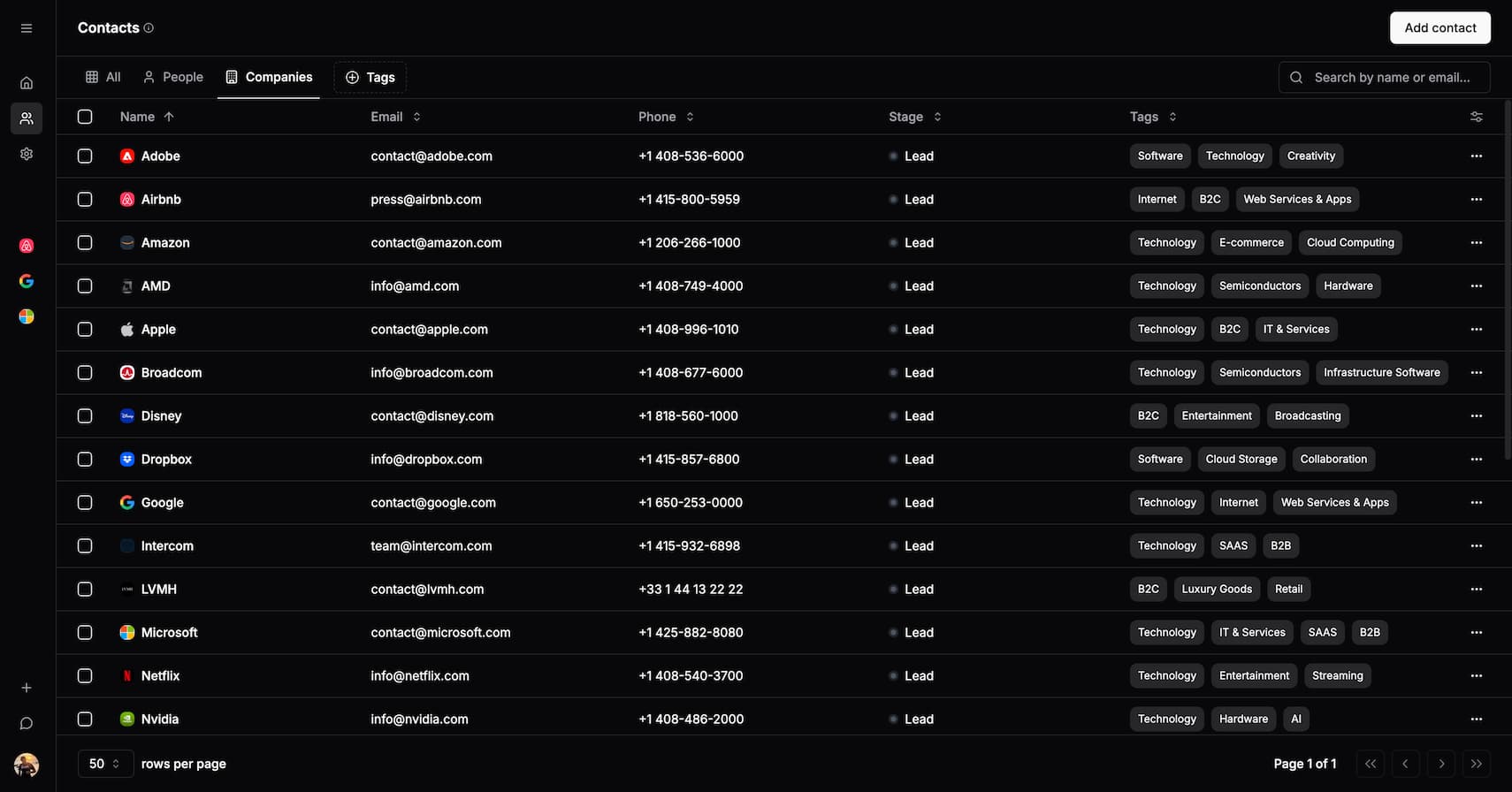

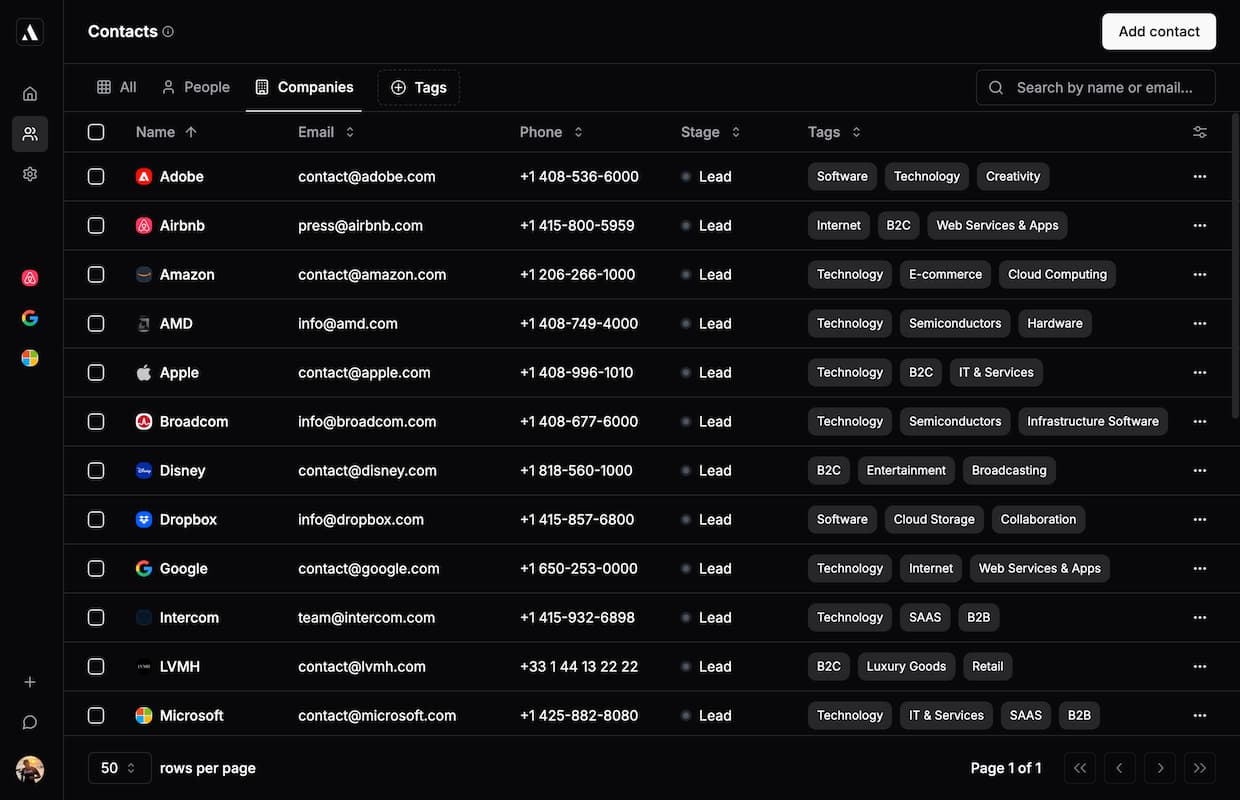

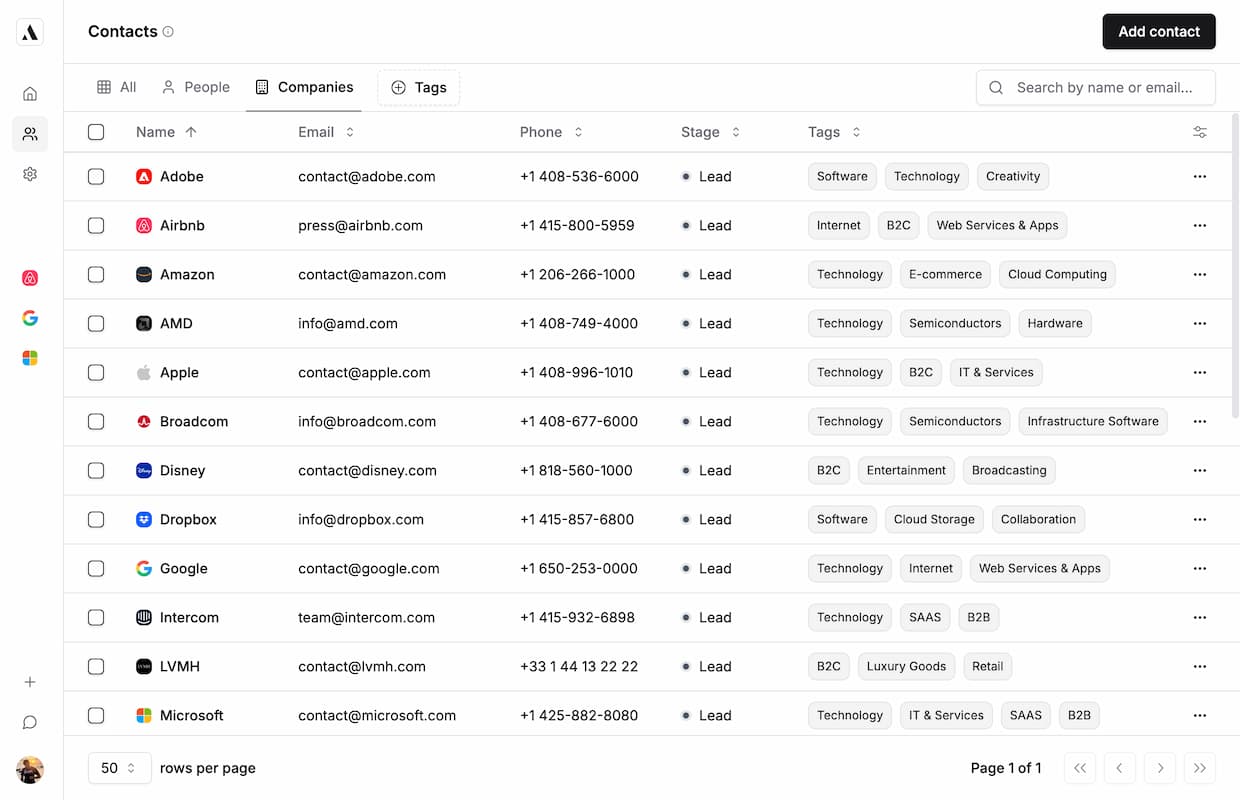

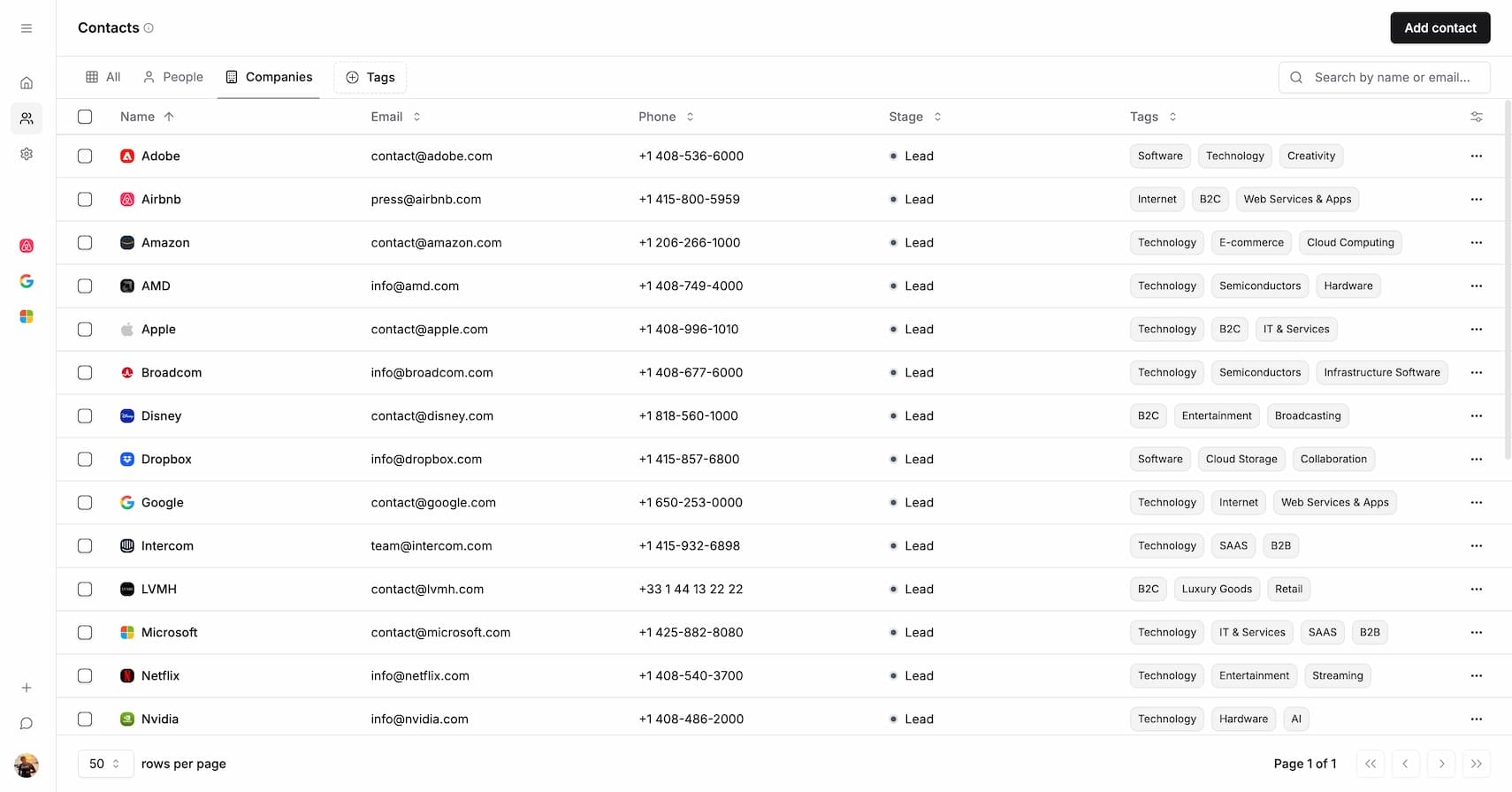

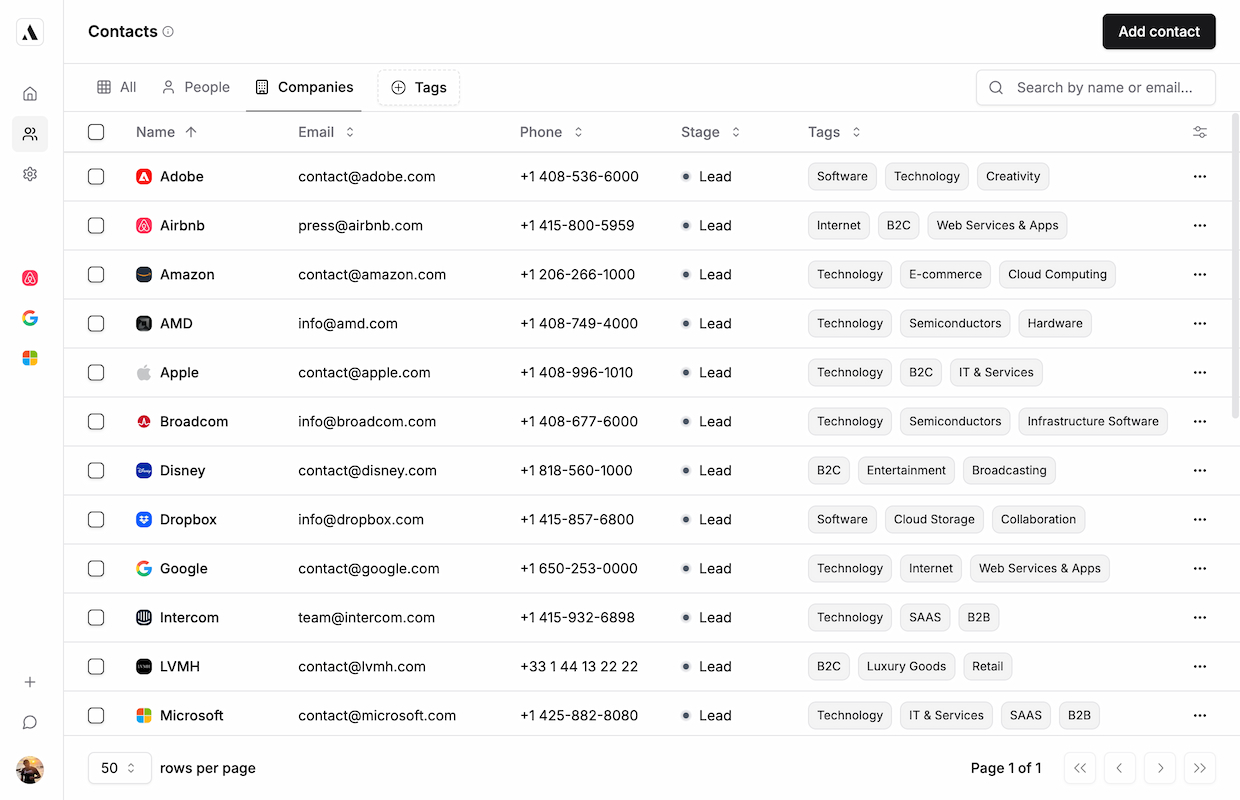

- Collapsed Sidebar: Achromatic ensures a collapsed sidebar on large (lg) to extra-large (xl) screen sizes. This approach provides consistent content space, minimizing the need for responsive adjustments within these widths.
- Double Sidebar: For settings a secondary sidebar is used, visible only on desktop and larger screens.

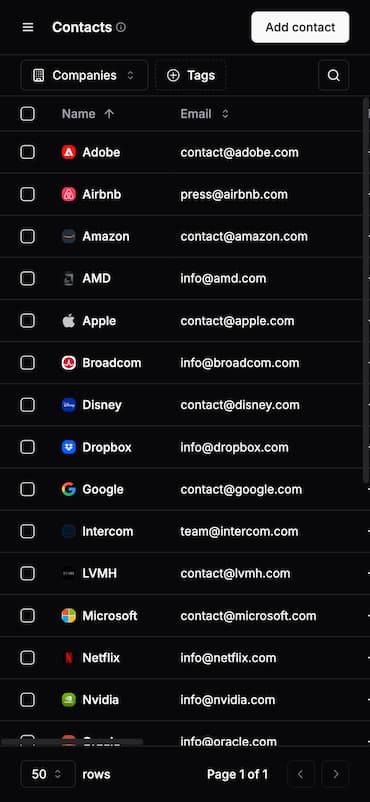

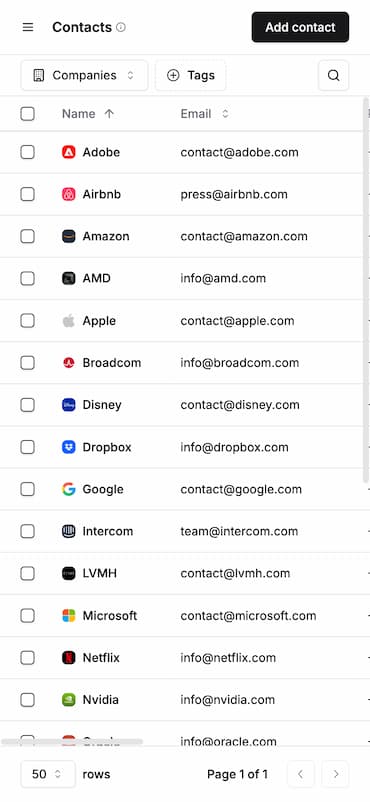

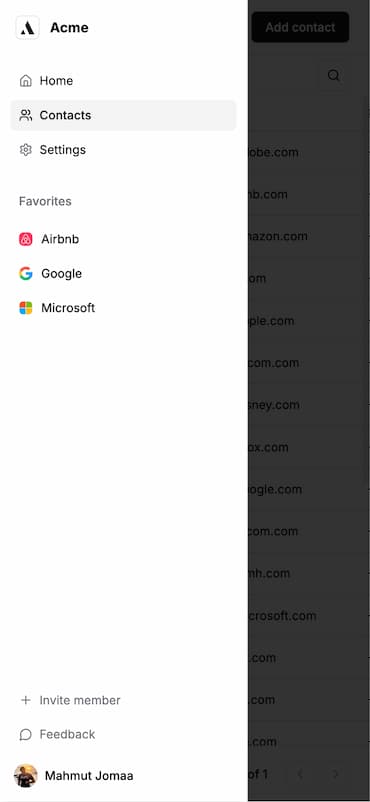

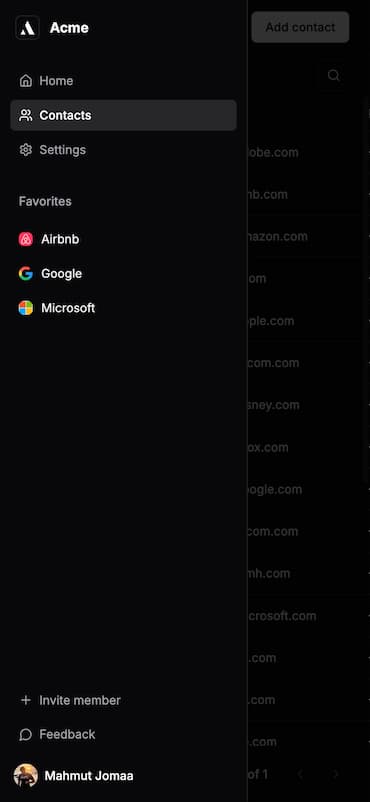

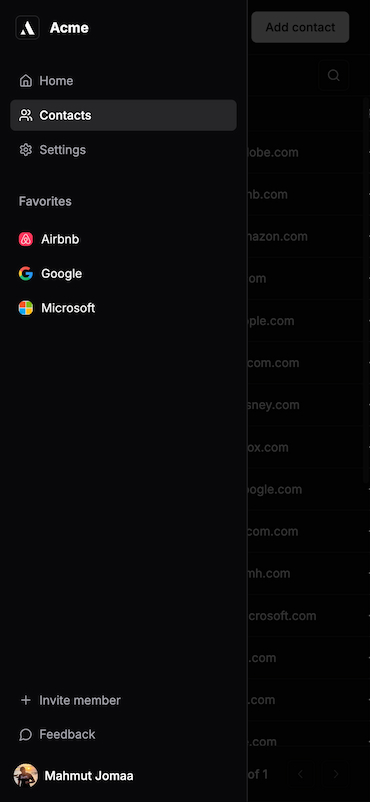

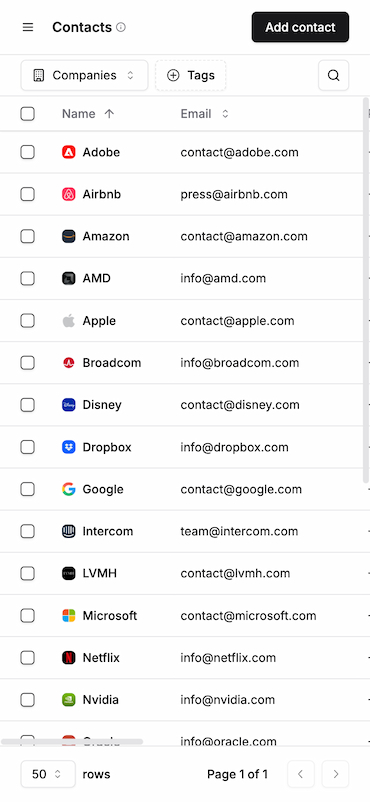

- Mobile Sheet: On mobile devices a single sheet is used to represent both sidebars.
- Drag & Drop: The favorites list supports drag-and-drop functionality. For smooth transitions we had to adjust the structure a bit.
Automatic Update
A simple git pull
will update your project.
Manual Update
New component
There is a new component ./components/ui/sidebar.tsx
that contains the new shadcn/ui sidebar.
'use client';
import * as React from 'react';
import { usePathname } from 'next/navigation';
import { Slot } from '@radix-ui/react-slot';
import { VariantProps, cva } from 'class-variance-authority';
import { ChevronLeftIcon, ChevronRightIcon, MenuIcon } from 'lucide-react';
import { Button } from '@/components/ui/button';
import { Input } from '@/components/ui/input';
import { Separator } from '@/components/ui/separator';
import {
Sheet,
SheetContent,
SheetDescription,
SheetTitle
} from '@/components/ui/sheet';
import { Skeleton } from '@/components/ui/skeleton';
import {
Tooltip,
TooltipContent,
TooltipProvider,
TooltipTrigger
} from '@/components/ui/tooltip';
import { useMediaQuery } from '@/hooks/use-media-query';
import { cn } from '@/lib/utils';
const SIDEBAR_COOKIE_NAME = 'sidebar:state';
const SIDEBAR_COOKIE_MAX_AGE = 60 * 60 * 24 * 7;
const SIDEBAR_WIDTH = '15rem';
const SIDEBAR_WIDTH_MOBILE = '18rem';
const SIDEBAR_WIDTH_ICON = '4rem';
const SIDEBAR_KEYBOARD_SHORTCUT = 'b';
const MOBILE_BREAKPOINT = 1024;
type SidebarContext = {
state: 'expanded' | 'collapsed';
open: boolean;
setOpen: (open: boolean) => void;
openMobile: boolean;
setOpenMobile: (open: boolean) => void;
isMobile: boolean;
toggleSidebar: () => void;
};
const SidebarContext = React.createContext<SidebarContext | null>(null);
function useSidebar(): SidebarContext {
const context = React.useContext(SidebarContext);
if (!context) {
throw new Error('useSidebar must be used within a SidebarProvider.');
}
return context;
}
export type SidebarProviderElement = HTMLDivElement;
export type SidebarProviderProps = React.ComponentProps<'div'> & {
defaultOpen?: boolean;
open?: boolean;
onOpenChange?: (open: boolean) => void;
};
const SidebarProvider = React.forwardRef<
SidebarProviderElement,
SidebarProviderProps
>(
(
{
defaultOpen = true,
open: openProp,
onOpenChange: setOpenProp,
className,
style,
children,
...props
},
ref
) => {
const isMobile = useMediaQuery(`(max-width: ${MOBILE_BREAKPOINT - 1}px)`, {
ssr: true,
fallback: false
});
const [openMobile, setOpenMobile] = React.useState(false);
// This is the internal state of the sidebar.
// We use openProp and setOpenProp for control from outside the component.
const [_open, _setOpen] = React.useState(defaultOpen);
const open = openProp ?? _open;
const setOpen = React.useCallback(
(value: boolean | ((value: boolean) => boolean)) => {
const openState = typeof value === 'function' ? value(open) : value;
if (setOpenProp) {
setOpenProp(openState);
} else {
_setOpen(openState);
}
// This sets the cookie to keep the sidebar state.
document.cookie = `${SIDEBAR_COOKIE_NAME}=${openState}; path=/; max-age=${SIDEBAR_COOKIE_MAX_AGE}`;
},
[setOpenProp, open]
);
// Helper to toggle the sidebar.
const toggleSidebar = React.useCallback(() => {
return isMobile
? setOpenMobile((open) => !open)
: setOpen((open) => !open);
}, [isMobile, setOpen, setOpenMobile]);
// Adds a keyboard shortcut to toggle the sidebar.
React.useEffect(() => {
const handleKeyDown = (event: KeyboardEvent) => {
if (
event.key === SIDEBAR_KEYBOARD_SHORTCUT &&
(event.metaKey || event.ctrlKey)
) {
event.preventDefault();
toggleSidebar();
}
};
window.addEventListener('keydown', handleKeyDown);
return () => window.removeEventListener('keydown', handleKeyDown);
}, [toggleSidebar]);
// We add a state so that we can do data-state="expanded" or "collapsed".
// This makes it easier to style the sidebar with Tailwind classes.
const state = open ? 'expanded' : 'collapsed';
const contextValue = React.useMemo<SidebarContext>(
() => ({
state,
open,
setOpen,
isMobile,
openMobile,
setOpenMobile,
toggleSidebar
}),
[state, open, setOpen, isMobile, openMobile, setOpenMobile, toggleSidebar]
);
return (
<SidebarContext.Provider value={contextValue}>
<TooltipProvider delayDuration={0}>
<div
style={
{
'--sidebar-width': SIDEBAR_WIDTH,
'--sidebar-width-icon': SIDEBAR_WIDTH_ICON,
...style
} as React.CSSProperties
}
className={cn(
'group/sidebar-wrapper flex min-h-svh w-full has-[[data-variant=inset]]:bg-sidebar',
className
)}
ref={ref}
{...props}
>
{children}
</div>
</TooltipProvider>
</SidebarContext.Provider>
);
}
);
SidebarProvider.displayName = 'SidebarProvider';
export type SidebarElement = HTMLDivElement;
export type SidebarProps = React.ComponentProps<'div'> & {
side?: 'left' | 'right';
variant?: 'sidebar' | 'floating' | 'inset';
collapsible?: 'offcanvas' | 'icon' | 'none';
};
const Sidebar = React.forwardRef<SidebarElement, SidebarProps>(
(
{
side = 'left',
variant = 'sidebar',
collapsible = 'offcanvas',
className,
children,
...props
},
ref
) => {
const pathname = usePathname();
const { isMobile, state, openMobile, setOpenMobile } = useSidebar();
React.useEffect(() => {
setOpenMobile(false);
}, [pathname]);
if (collapsible === 'none') {
return (
<div
className={cn(
'flex h-full w-[--sidebar-width] flex-col bg-sidebar text-sidebar-foreground',
className
)}
ref={ref}
{...props}
>
{children}
</div>
);
}
if (isMobile) {
return (
<Sheet
open={openMobile}
onOpenChange={setOpenMobile}
{...props}
>
<SheetContent
data-sidebar="sidebar"
data-mobile="true"
className="w-[--sidebar-width] bg-sidebar p-0 text-sidebar-foreground [&>button]:hidden"
style={
{
'--sidebar-width': SIDEBAR_WIDTH_MOBILE
} as React.CSSProperties
}
side={side}
>
<SheetTitle className="sr-only">Menu</SheetTitle>
<SheetDescription className="sr-only">Mobile menu</SheetDescription>
<div className="flex size-full flex-col">{children}</div>
</SheetContent>
</Sheet>
);
}
return (
<div
ref={ref}
className="group peer hidden text-sidebar-foreground md:block"
data-state={state}
data-collapsible={state === 'collapsed' ? collapsible : ''}
data-variant={variant}
data-side={side}
>
{/* This is what handles the sidebar gap on desktop */}
<div
className={cn(
'relative h-svh w-[--sidebar-width] bg-transparent transition-[width] duration-200 ease-linear',
'group-data-[collapsible=offcanvas]:w-0',
'group-data-[side=right]:rotate-180',
variant === 'floating' || variant === 'inset'
? 'group-data-[collapsible=icon]:w-[calc(var(--sidebar-width-icon)_+_theme(spacing.4))]'
: 'group-data-[collapsible=icon]:w-[--sidebar-width-icon]'
)}
/>
<div
className={cn(
'fixed inset-y-0 z-10 hidden h-svh w-[--sidebar-width] transition-[left,right,width] duration-200 ease-linear md:flex',
side === 'left'
? 'left-0 group-data-[collapsible=offcanvas]:left-[calc(var(--sidebar-width)*-1)]'
: 'right-0 group-data-[collapsible=offcanvas]:right-[calc(var(--sidebar-width)*-1)]',
// Adjust the padding for floating and inset variants.
variant === 'floating' || variant === 'inset'
? 'p-2 group-data-[collapsible=icon]:w-[calc(var(--sidebar-width-icon)_+_theme(spacing.4)_+2px)]'
: 'group-data-[collapsible=icon]:w-[--sidebar-width-icon] group-data-[side=left]:border-r group-data-[side=right]:border-l',
className
)}
{...props}
>
<div
data-sidebar="sidebar"
className="flex size-full flex-col bg-sidebar group-data-[variant=floating]:rounded-lg group-data-[variant=floating]:border group-data-[variant=floating]:border-sidebar-border group-data-[variant=floating]:shadow"
>
{children}
</div>
</div>
</div>
);
}
);
Sidebar.displayName = 'Sidebar';
export type SidebarTriggerElement = React.ElementRef<typeof Button>;
export type SidebarTriggerProps = React.ComponentProps<typeof Button> & {
icon?: 'menu' | 'chevronLeft' | 'chevronRight';
};
const SidebarTrigger = React.forwardRef<
SidebarTriggerElement,
SidebarTriggerProps
>(({ className, onClick, icon = 'menu', ...props }, ref) => {
const { toggleSidebar } = useSidebar();
return (
<Button
ref={ref}
data-sidebar="trigger"
variant="ghost"
size="icon"
className={cn('size-9', className)}
onClick={(event) => {
onClick?.(event);
toggleSidebar();
}}
{...props}
>
{icon === 'menu' && <MenuIcon className="size-4 shrink-0" />}
{icon === 'chevronLeft' && (
<ChevronLeftIcon className="size-4 shrink-0" />
)}
{icon === 'chevronRight' && (
<ChevronRightIcon className="size-4 shrink-0" />
)}
<span className="sr-only">Toggle Sidebar</span>
</Button>
);
});
SidebarTrigger.displayName = 'SidebarTrigger';
export type SidebarRailElement = React.ElementRef<typeof Button>;
export type SidebarRailProps = React.ComponentProps<'button'>;
const SidebarRail = React.forwardRef<SidebarRailElement, SidebarRailProps>(
({ className, ...props }, ref) => {
const { toggleSidebar } = useSidebar();
return (
<button
ref={ref}
data-sidebar="rail"
aria-label="Toggle Sidebar"
tabIndex={-1}
onClick={toggleSidebar}
title="Toggle Sidebar"
className={cn(
'absolute inset-y-0 z-20 hidden w-4 -translate-x-1/2 transition-all ease-linear after:absolute after:inset-y-0 after:left-1/2 after:w-[2px] hover:after:bg-sidebar-border group-data-[side=left]:-right-4 group-data-[side=right]:left-0 sm:flex',
'[[data-side=left]_&]:cursor-w-resize [[data-side=right]_&]:cursor-e-resize',
'[[data-side=left][data-state=collapsed]_&]:cursor-e-resize [[data-side=right][data-state=collapsed]_&]:cursor-w-resize',
'group-data-[collapsible=offcanvas]:translate-x-0 group-data-[collapsible=offcanvas]:after:left-full group-data-[collapsible=offcanvas]:hover:bg-sidebar',
'[[data-side=left][data-collapsible=offcanvas]_&]:-right-2',
'[[data-side=right][data-collapsible=offcanvas]_&]:-left-2',
className
)}
{...props}
/>
);
}
);
SidebarRail.displayName = 'SidebarRail';
export type SidebarInsetElement = HTMLDivElement;
export type SidebarInsetProps = React.ComponentProps<'main'>;
const SidebarInset = React.forwardRef<SidebarInsetElement, SidebarInsetProps>(
({ className, ...props }, ref) => (
<main
ref={ref}
className={cn(
'relative flex min-h-svh flex-1 flex-col bg-background',
'peer-data-[variant=inset]:min-h-[calc(100svh-theme(spacing.4))] md:peer-data-[variant=inset]:m-2 md:peer-data-[state=collapsed]:peer-data-[variant=inset]:ml-2 md:peer-data-[variant=inset]:ml-0 md:peer-data-[variant=inset]:rounded-xl md:peer-data-[variant=inset]:shadow',
className
)}
{...props}
/>
)
);
SidebarInset.displayName = 'SidebarInset';
export type SidebarInputElement = React.ElementRef<typeof Input>;
export type SidebarInputProps = React.ComponentProps<typeof Input>;
const SidebarInput = React.forwardRef<SidebarInputElement, SidebarInputProps>(
({ className, ...props }, ref) => (
<Input
ref={ref}
data-sidebar="input"
className={cn(
'h-9 w-full bg-background shadow-none focus-visible:ring-2 focus-visible:ring-sidebar-ring',
className
)}
{...props}
/>
)
);
SidebarInput.displayName = 'SidebarInput';
export type SidebarHeaderElement = HTMLDivElement;
export type SidebarHeaderProps = React.ComponentProps<'div'>;
const SidebarHeader = React.forwardRef<
SidebarHeaderElement,
SidebarHeaderProps
>(({ className, ...props }, ref) => (
<div
ref={ref}
data-sidebar="header"
className={cn('flex flex-col gap-2 p-3', className)}
{...props}
/>
));
SidebarHeader.displayName = 'SidebarHeader';
export type SidebarFooterElement = HTMLDivElement;
export type SidebarFooterProps = React.ComponentProps<'div'>;
const SidebarFooter = React.forwardRef<
SidebarFooterElement,
SidebarFooterProps
>(({ className, ...props }, ref) => (
<div
ref={ref}
data-sidebar="footer"
className={cn('flex flex-col gap-2 p-3', className)}
{...props}
/>
));
SidebarFooter.displayName = 'SidebarFooter';
export type SidebarSeparatorElement = React.ElementRef<typeof Separator>;
export type SidebarSeparatorProps = React.ComponentProps<typeof Separator>;
const SidebarSeparator = React.forwardRef<
SidebarSeparatorElement,
SidebarSeparatorProps
>(({ className, ...props }, ref) => (
<Separator
ref={ref}
data-sidebar="separator"
className={cn('mx-2 w-auto bg-sidebar-border', className)}
{...props}
/>
));
SidebarSeparator.displayName = 'SidebarSeparator';
export type SidebarContentElement = HTMLDivElement;
export type SidebarContentProps = React.ComponentProps<'div'>;
const SidebarContent = React.forwardRef<
SidebarContentElement,
SidebarContentProps
>(({ className, ...props }, ref) => (
<div
ref={ref}
data-sidebar="content"
className={cn(
'flex min-h-0 flex-1 flex-col gap-3 overflow-auto group-data-[collapsible=icon]:overflow-hidden',
className
)}
{...props}
/>
));
SidebarContent.displayName = 'SidebarContent';
export type SidebarGroupElement = HTMLDivElement;
export type SidebarGroupProps = React.ComponentProps<'div'>;
const SidebarGroup = React.forwardRef<SidebarGroupElement, SidebarGroupProps>(
({ className, ...props }, ref) => (
<div
ref={ref}
data-sidebar="group"
className={cn('relative flex w-full min-w-0 flex-col p-3', className)}
{...props}
/>
)
);
SidebarGroup.displayName = 'SidebarGroup';
export type SidebarGroupLabelElement = HTMLDivElement;
export type SidebarGroupLabelProps = React.ComponentProps<'div'> & {
asChild?: boolean;
};
const SidebarGroupLabel = React.forwardRef<
SidebarGroupLabelElement,
SidebarGroupLabelProps
>(({ className, asChild = false, ...props }, ref) => {
const Comp = asChild ? Slot : 'div';
return (
<Comp
ref={ref}
data-sidebar="group-label"
className={cn(
'flex h-9 shrink-0 items-center rounded-md px-2.5 text-xs font-medium text-sidebar-foreground/70 outline-none ring-sidebar-ring transition-[margin,opa] duration-200 ease-linear focus-visible:ring-2 [&>svg]:size-4 [&>svg]:shrink-0',
'group-data-[collapsible=icon]:-mt-8 group-data-[collapsible=icon]:opacity-0',
className
)}
{...props}
/>
);
});
SidebarGroupLabel.displayName = 'SidebarGroupLabel';
export type SidebarGroupActionElement = HTMLButtonElement;
export type SidebarGroupActionProps = React.ComponentProps<'button'> & {
asChild?: boolean;
};
const SidebarGroupAction = React.forwardRef<
SidebarGroupActionElement,
SidebarGroupActionProps
>(({ className, asChild = false, ...props }, ref) => {
const Comp = asChild ? Slot : 'button';
return (
<Comp
ref={ref}
data-sidebar="group-action"
className={cn(
'absolute right-3 top-3.5 flex aspect-square w-5 items-center justify-center rounded-md p-0 text-sidebar-foreground outline-none ring-sidebar-ring transition-transform hover:bg-sidebar-accent hover:text-sidebar-accent-foreground focus-visible:ring-2 [&>svg]:size-4 [&>svg]:shrink-0',
// Increases the hit area of the button on mobile.
'after:absolute after:-inset-2 after:md:hidden',
'group-data-[collapsible=icon]:hidden',
className
)}
{...props}
/>
);
});
SidebarGroupAction.displayName = 'SidebarGroupAction';
export type SidebarGroupContentElement = HTMLDivElement;
export type SidebarGroupContentProps = React.ComponentProps<'div'>;
const SidebarGroupContent = React.forwardRef<
SidebarGroupContentElement,
SidebarGroupContentProps
>(({ className, ...props }, ref) => (
<div
ref={ref}
data-sidebar="group-content"
className={cn('w-full text-sm', className)}
{...props}
/>
));
SidebarGroupContent.displayName = 'SidebarGroupContent';
export type SidebarMenuElement = HTMLUListElement;
export type SidebarMenuProps = React.ComponentProps<'ul'>;
const SidebarMenu = React.forwardRef<SidebarMenuElement, SidebarMenuProps>(
({ className, ...props }, ref) => (
<ul
ref={ref}
data-sidebar="menu"
className={cn('flex w-full min-w-0 flex-col gap-1', className)}
{...props}
/>
)
);
SidebarMenu.displayName = 'SidebarMenu';
export type SidebarMenuItemElement = HTMLLIElement;
export type SidebarMenuItemProps = React.ComponentProps<'li'>;
const SidebarMenuItem = React.forwardRef<
SidebarMenuItemElement,
SidebarMenuItemProps
>(({ className, ...props }, ref) => (
<li
ref={ref}
data-sidebar="menu-item"
className={cn('group/menu-item relative', className)}
{...props}
/>
));
SidebarMenuItem.displayName = 'SidebarMenuItem';
export const sidebarMenuButtonVariants = cva(
'peer/menu-button flex w-full items-center gap-2 overflow-hidden rounded-md p-2.5 text-left text-sm outline-none ring-sidebar-ring transition-[width,height,padding] hover:bg-sidebar-accent hover:text-sidebar-accent-foreground focus-visible:ring-2 active:bg-sidebar-accent active:text-sidebar-accent-foreground disabled:pointer-events-none disabled:opacity-50 group-has-[[data-sidebar=menu-action]]/menu-item:pr-8 aria-disabled:pointer-events-none aria-disabled:opacity-50 data-[active=true]:bg-sidebar-accent data-[active=true]:font-medium data-[active=true]:text-sidebar-accent-foreground data-[state=open]:hover:bg-sidebar-accent data-[state=open]:hover:text-sidebar-accent-foreground group-data-[collapsible=icon]:!size-9 group-data-[collapsible=icon]:!p-2.5 [&>span:last-child]:truncate [&>svg]:size-4 [&>svg]:shrink-0',
{
variants: {
variant: {
default: 'hover:bg-sidebar-accent hover:text-sidebar-accent-foreground',
outline:
'bg-background shadow-[0_0_0_1px_hsl(var(--sidebar-border))] hover:bg-sidebar-accent hover:text-sidebar-accent-foreground hover:shadow-[0_0_0_1px_hsl(var(--sidebar-accent))]'
},
size: {
default: 'h-9 text-sm',
sm: 'h-8 text-xs',
lg: 'h-12 text-sm group-data-[collapsible=icon]:!p-0'
}
},
defaultVariants: {
variant: 'default',
size: 'default'
}
}
);
export type SidebarMenuButtonElement = HTMLButtonElement;
export type SidebarMenuButtonProps = React.ComponentProps<'button'> & {
asChild?: boolean;
isActive?: boolean;
tooltip?: string | React.ComponentProps<typeof TooltipContent>;
} & VariantProps<typeof sidebarMenuButtonVariants>;
const SidebarMenuButton = React.forwardRef<
SidebarMenuButtonElement,
SidebarMenuButtonProps
>(
(
{
asChild = false,
isActive = false,
variant = 'default',
size = 'default',
tooltip,
className,
...props
},
ref
) => {
const Comp = asChild ? Slot : 'button';
const { isMobile, state } = useSidebar();
const button = (
<Comp
ref={ref}
data-sidebar="menu-button"
data-size={size}
data-active={isActive}
className={cn(sidebarMenuButtonVariants({ variant, size }), className)}
{...props}
/>
);
if (!tooltip) {
return button;
}
if (typeof tooltip === 'string') {
tooltip = {
children: tooltip
};
}
return (
<Tooltip>
<TooltipTrigger asChild>{button}</TooltipTrigger>
<TooltipContent
side="right"
align="center"
hidden={state !== 'collapsed' || isMobile}
{...tooltip}
/>
</Tooltip>
);
}
);
SidebarMenuButton.displayName = 'SidebarMenuButton';
export type SidebarMenuActionElement = HTMLButtonElement;
export type SidebarMenuActionProps = React.ComponentProps<'button'> & {
asChild?: boolean;
showOnHover?: boolean;
};
const SidebarMenuAction = React.forwardRef<
SidebarMenuActionElement,
SidebarMenuActionProps
>(({ className, asChild = false, showOnHover = false, ...props }, ref) => {
const Comp = asChild ? Slot : 'button';
return (
<Comp
ref={ref}
data-sidebar="menu-action"
className={cn(
'absolute right-1 top-1.5 flex aspect-square w-5 items-center justify-center rounded-md p-0 text-sidebar-foreground outline-none ring-sidebar-ring transition-transform hover:bg-sidebar-accent hover:text-sidebar-accent-foreground focus-visible:ring-2 peer-hover/menu-button:text-sidebar-accent-foreground [&>svg]:size-4 [&>svg]:shrink-0',
// Increases the hit area of the button on mobile.
'after:absolute after:-inset-2 after:md:hidden',
'peer-data-[size=sm]/menu-button:top-1',
'peer-data-[size=default]/menu-button:top-1.5',
'peer-data-[size=lg]/menu-button:top-2.5',
'group-data-[collapsible=icon]:hidden',
showOnHover &&
'group-focus-within/menu-item:opacity-100 group-hover/menu-item:opacity-100 data-[state=open]:opacity-100 peer-data-[active=true]/menu-button:text-sidebar-accent-foreground md:opacity-0',
className
)}
{...props}
/>
);
});
SidebarMenuAction.displayName = 'SidebarMenuAction';
export type SidebarMenuBadgeElement = HTMLDivElement;
export type SidebarMenuBadgeProps = React.ComponentProps<'div'>;
const SidebarMenuBadge = React.forwardRef<
SidebarMenuBadgeElement,
SidebarMenuBadgeProps
>(({ className, ...props }, ref) => (
<div
ref={ref}
data-sidebar="menu-badge"
className={cn(
'pointer-events-none absolute right-1 flex h-5 min-w-5 select-none items-center justify-center rounded-md px-1 text-xs font-medium tabular-nums text-sidebar-foreground',
'peer-hover/menu-button:text-sidebar-accent-foreground peer-data-[active=true]/menu-button:text-sidebar-accent-foreground',
'peer-data-[size=sm]/menu-button:top-1',
'peer-data-[size=default]/menu-button:top-1.5',
'peer-data-[size=lg]/menu-button:top-2.5',
'group-data-[collapsible=icon]:hidden',
className
)}
{...props}
/>
));
SidebarMenuBadge.displayName = 'SidebarMenuBadge';
export type SidebarMenuSkeletonElement = HTMLDivElement;
export type SidebarMenuSkeletonProps = React.ComponentProps<'div'> & {
showIcon?: boolean;
};
const SidebarMenuSkeleton = React.forwardRef<
SidebarMenuSkeletonElement,
SidebarMenuSkeletonProps
>(({ className, showIcon = false, ...props }, ref) => {
// Random width between 50 to 90%.
const width = React.useMemo(() => {
return `${Math.floor(Math.random() * 40) + 50}%`;
}, []);
return (
<div
ref={ref}
data-sidebar="menu-skeleton"
className={cn('flex h-9 items-center gap-2 rounded-md px-2.5', className)}
{...props}
>
{showIcon && (
<Skeleton
className="size-4 rounded-md"
data-sidebar="menu-skeleton-icon"
/>
)}
<Skeleton
className="h-4 max-w-[--skeleton-width] flex-1"
data-sidebar="menu-skeleton-text"
style={
{
'--skeleton-width': width
} as React.CSSProperties
}
/>
</div>
);
});
SidebarMenuSkeleton.displayName = 'SidebarMenuSkeleton';
export type SidebarMenuSubElement = HTMLUListElement;
export type SidebarMenuSubProps = React.ComponentProps<'ul'>;
const SidebarMenuSub = React.forwardRef<
SidebarMenuSubElement,
SidebarMenuSubProps
>(({ className, ...props }, ref) => (
<ul
ref={ref}
data-sidebar="menu-sub"
className={cn(
'mx-3.5 flex min-w-0 translate-x-px flex-col gap-1 border-l border-sidebar-border px-2.5 py-0.5',
'group-data-[collapsible=icon]:hidden',
className
)}
{...props}
/>
));
SidebarMenuSub.displayName = 'SidebarMenuSub';
export type SidebarMenuSubItemElement = HTMLLIElement;
export type SidebarMenuSubItemProps = React.ComponentProps<'li'>;
const SidebarMenuSubItem = React.forwardRef<
SidebarMenuSubItemElement,
SidebarMenuSubItemProps
>(({ ...props }, ref) => (
<li
ref={ref}
{...props}
/>
));
SidebarMenuSubItem.displayName = 'SidebarMenuSubItem';
export type SidebarMenuSubButtonElement = HTMLAnchorElement;
export type SidebarMenuSubButtonProps = React.ComponentProps<'a'> & {
asChild?: boolean;
size?: 'sm' | 'md';
isActive?: boolean;
};
const SidebarMenuSubButton = React.forwardRef<
SidebarMenuSubButtonElement,
SidebarMenuSubButtonProps
>(({ asChild = false, size = 'md', isActive, className, ...props }, ref) => {
const Comp = asChild ? Slot : 'a';
return (
<Comp
ref={ref}
data-sidebar="menu-sub-button"
data-size={size}
data-active={isActive}
className={cn(
'flex h-7 min-w-0 -translate-x-px items-center gap-2 overflow-hidden rounded-md px-2.5 text-sidebar-foreground outline-none ring-sidebar-ring hover:bg-sidebar-accent hover:text-sidebar-accent-foreground focus-visible:ring-2 active:bg-sidebar-accent active:text-sidebar-accent-foreground disabled:pointer-events-none disabled:opacity-50 aria-disabled:pointer-events-none aria-disabled:opacity-50 [&>span:last-child]:truncate [&>svg]:size-4 [&>svg]:shrink-0 [&>svg]:text-sidebar-accent-foreground',
'data-[active=true]:bg-sidebar-accent data-[active=true]:text-sidebar-accent-foreground',
size === 'sm' && 'text-xs',
size === 'md' && 'text-sm',
'group-data-[collapsible=icon]:hidden',
className
)}
{...props}
/>
);
});
SidebarMenuSubButton.displayName = 'SidebarMenuSubButton';
export {
Sidebar,
SidebarContent,
SidebarFooter,
SidebarGroup,
SidebarGroupAction,
SidebarGroupContent,
SidebarGroupLabel,
SidebarHeader,
SidebarInput,
SidebarInset,
SidebarMenu,
SidebarMenuAction,
SidebarMenuBadge,
SidebarMenuButton,
SidebarMenuItem,
SidebarMenuSkeleton,
SidebarMenuSub,
SidebarMenuSubButton,
SidebarMenuSubItem,
SidebarProvider,
SidebarRail,
SidebarSeparator,
SidebarTrigger,
useSidebar
};
global.css
Replace the --sidebar-width
CSS variable with the following new variables:
--sidebar-background: 0 0% 100%;
--sidebar-foreground: 240 10% 3.9%;
--sidebar-primary: 240 5.9% 10%;
--sidebar-primary-foreground: 0 0% 98%;
--sidebar-accent: 240 4.8% 95.9%;
--sidebar-accent-foreground: 240 5.9% 10%;
--sidebar-border: 240 5.9% 90%;
--sidebar-ring: 240 10% 3.9%;
tailwind.config.cjs
We extend the Tailwind configuration by adding sidebar variables:
card: {
...
},
sidebar: {
DEFAULT: 'hsl(var(--sidebar-background))',
foreground: 'hsl(var(--sidebar-foreground))',
primary: 'hsl(var(--sidebar-primary))',
'primary-foreground': 'hsl(var(--sidebar-primary-foreground))',
accent: 'hsl(var(--sidebar-accent))',
'accent-foreground': 'hsl(var(--sidebar-accent-foreground))',
border: 'hsl(var(--sidebar-border))',
ring: 'hsl(var(--sidebar-ring))'
}
Files
To maintain consistency with the community, we've adopted the naming conventions from the shadcn/ui project. Fortunately, our existing names and functionality were already closely aligned.
Left sidebar
app-sidebar.tsx
nav-main.tsx
nav-favorites.tsx
nav-support.tsx
nav-user.tsx
sidebar-renderer.tsx
Individual components like invite-member-button.tsx has been merged into the nav-support.tsx. The sidebar-renderer.tsx decides which sidebar (app-sidebar or settings-sidebar) to render for mobile.
Settings sidebar
settings-sidebar.tsx
nav-account.tsx
nav-organization.tsx
There is no mobile sheet anymore since it is built into the shadcn/ui component.
Layout
The dashboard layout didn't change much.
<div className="flex h-screen overflow-hidden">
<SidebarProvider>
<SidebarRenderer
favorites={favorites}
profile={profile}
/>
<SidebarInset
id="skip"
className="size-full lg:peer-data-[state=collapsed]:max-w-[calc(100vw-var(--sidebar-width-icon))] lg:peer-data-[state=expanded]:max-w-[calc(100vw-var(--sidebar-width))]"
>
{children}
</SidebarInset>
</SidebarProvider>
</div>
For the inset we set a max-width to guarantee that the full-width table can overflow horizontally correctly.
Shadcn/ui Tooltip Fix
To display tooltips correctly without fiddling with z-indexes, we need to fix a bug in the shadcn/ui tooltip component. It currently lacks a portal to render the tooltip directly in the document body.
<TooltipPrimitive.Portal>
<TooltipPrimitive.Content />
</TooltipPrimitive.Portal>
